E and F Class Cruisers
The E class correspond to the RN original ships with a different layout. The
F class is my replacement for the Frobisher class with the single 7.5" replaced
with turrets to give the same broadside.
First designed as the follow on from the D type cruisers, the main changes being
to double the power output to 80,000shp for an increase of speed from 29 to 33
knots but the original design raised the number of 6" from six to seven. Laid
down in 1918 the three ships, Emerald, Enterprise, and Euphrates, had their
building schedules slowed with the end of WW1. Allied to these three ships were
five F class cruisers of the same design but these ships were to be armed with
7.5"/8" guns to combat the German
Admiral Schroder class cruisers under construction. Both ships were to go to
turret designs, moving away from the hand loaded, shield mounted, weapons of
earlier designs. The twin 6" was to also be used on the G3/N3 designed ships,
while the 7.5"/8" would be used on the forthcoming heavy cruiser classes. The
E's would have four mountings, the F's three.
The changes between the two designs are fairly obvious with the F class having
four triple 21" torpedo mountings, while the E class had four quadruple torpedo
mountings. The F's had a fifth 4" mounting superfiring over the aft 7.5" turret.
The eight ships went through various refits with additions and alterations
through to 1935, the most major of which was the addition of aircraft handling
facilities and the change from single to twin 4" AA mountings. The first HACS
units were also added to control the heavy AA batteries. Light AA was increased
with another four single 2pd guns.
By the outbreak of war in 1939, the ships were still the fastest cruisers in the
fleet, and as such were posted to where their speed would be the greatest asset.
To that end the three E's were at Gibraltar with Force H, while the five F's
were with the Home Fleet from ports around the United Kingdom with three posted
to Scapa Flow. The first signs of Radar and radar assisted gunnery sets were
starting to show up on the ships as they went through their refit processes. The
three ships with Force H had to wait till they were rotated through to UK ports
for major upgrades. More AA weapons and electronic equipment saw the removal of
the torpedo tubes and aircraft handling facilities as topweight became an ever
increasing problem. With the Italians entering the war in July 1940 the
Mediterranean became a real battleground where ships were at the mercy of
aircraft but also had their own wins in various battles in and around the island
of Malta with Force K. 1942 and the remaining cruisers are spread far and wide
from fighting in the Arctic wastes to fighting around sun soaked atolls in the
Pacific. Late 1943 saw a freeze on putting new equipment aboard these ships as
the future of the war became clearer and these old and now worn out ships would
have no future past the end of the current war. Maintenance of current systems
would be it.
By this time the ships foreparts still looked like sisters, but the rear areas
were considerably different as new equipment set them apart. The Enterprise show
its armament after late 1943 refit for Pacific service. The 20mm guns have gone
and been replaced with twin 40mm mountings, where the F's replaced the catapult
with two quad 2pd mountings the Enterprise had one octuple mounting in the same
area.
May 1941, and HMS Fearless is part of the search groups looking for the Prinz
Eugen recently escaped from the Denmark Strait battle. The Fearless has yet to
be modernised and is still carrying its aircraft handling facilities and both
sets of torpedoes, speed is not optimum as the ship is overdue for a hull and
boiler clean. The Prinz Eugen appears out of the darkness and into the dawns
light, rushing into range of the Fearless and giving the Fearless no time to use
its supposed superior speed to shadow the Prinz Eugen and call in the big boys
to take care of the mighty cruiser. The Prinz Eugen being superior in all
departments to the Fearless, starts hitting with its 3rd salvo, and registers
hits reguarly thereafter. The effect of these hits on the Fearless is horrendous.
The Fearless is armoured against 5.9" guns not the big 8.2" shells arriving from
the Prinz Eugen, damage keeps increasing with firepower and horsepower both
draining away. The Prinz Eugen did not get away unscathed, the 7.5" guns of the
Fearless hit the Prinz Eugen and caused enough damage for the Prinz Eugen to seek
the sanctuary of a French Atlantic port for repairs. The end came for the
Fearless when two hits from the same salvo hit the two forward turrets and
magazines, causing an explosion that blew most of the bow away, leaving the
Fearless in a sinking condition and just unable to carry on the fight as the
Prinz Eugen sailed off into the distance. The nearest help for the Fearless was
the cruiser Newcastle who arrived in time to take off the Fearless' crew and put
a torpedo into the wreck and sink it.
Displacement | 8,200 tons standard, 10,450 tons full load | |||||
Length | 572 ft | |||||
Breadth | 57 ft | |||||
Draught | 19 ft | |||||
Machinery | Four shaft, Geared turbines, 80,000shp | |||||
Speed | 33-34 knots | |||||
Range |
7,500 miles at 15 knots 1,700 miles at 32 knots |
|||||
Armour | 4" side 1.5" deck | |||||
Armament |
As built E Class 8 x 6" (4x2) 4 x 4" AA (4x1) 9 x 2pd AA (2x4, 1x1) |
As built F Class 6 x 7.5" (3x2) 5 x 4" AA (5x1) 8 x 2pd AA (2x4) |
E Class to 1935 8 x 6" (4x2) 8 x 4" (4x2) 13 x 2pd (2x4, 5x1) |
F Class to 1935 6 x 7.5" (3x2) 10 x 4" (5x2) 12 x 2pd (2x4, 4x1) |
E Class to 1942 8 x 6" (4x2) 8 x 4" (4x2) 16 x 2pd (1x8, 2x4) 16 x 40mm (8x2) |
F Class to 1942 6 x 7.5" (3x2) 10 x 4" (5x2) 16 x 2pd (4x4) 14 x 20mm (7x2) |
Torpedoes | 16 x 21" (4x4) | 12 x 21" (4x3) | 16 x 21" (4x4) | 12 x 21" (4x3) | nil | nil |
Aircraft | nil | nil | 2 | 2 | nil | nil |
Complement | 580 | 590 | 610 | 615 | 640 | 650 |
Notes |
E Class Ships Emerald (1925) Enterprise (1926) Euphrates (1926) Sunk in action with Japanese cruiser forces 1942, while part of Australian cruiser group with HMAS Canberra (also sunk) and others. F Class Ships Formidable (1925) Frobisher (1925) Furious (1926) Fearless (1927) wrecked in action with the Prinz Eugen May 1941, sunk by HMS Newcastle. Fulmar (1927) |

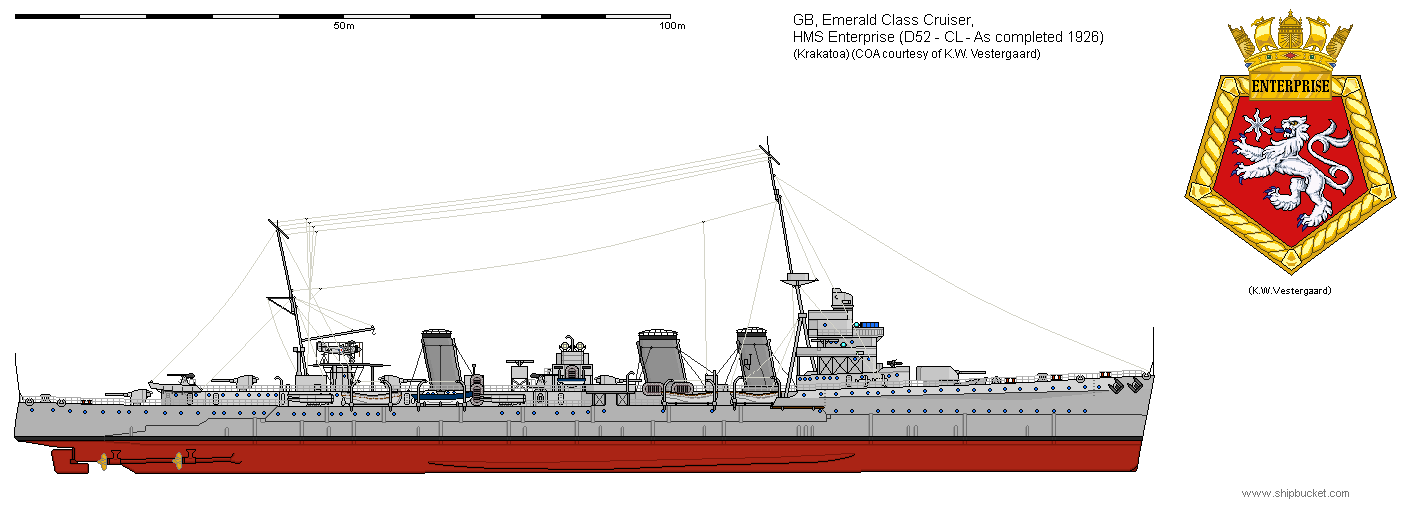

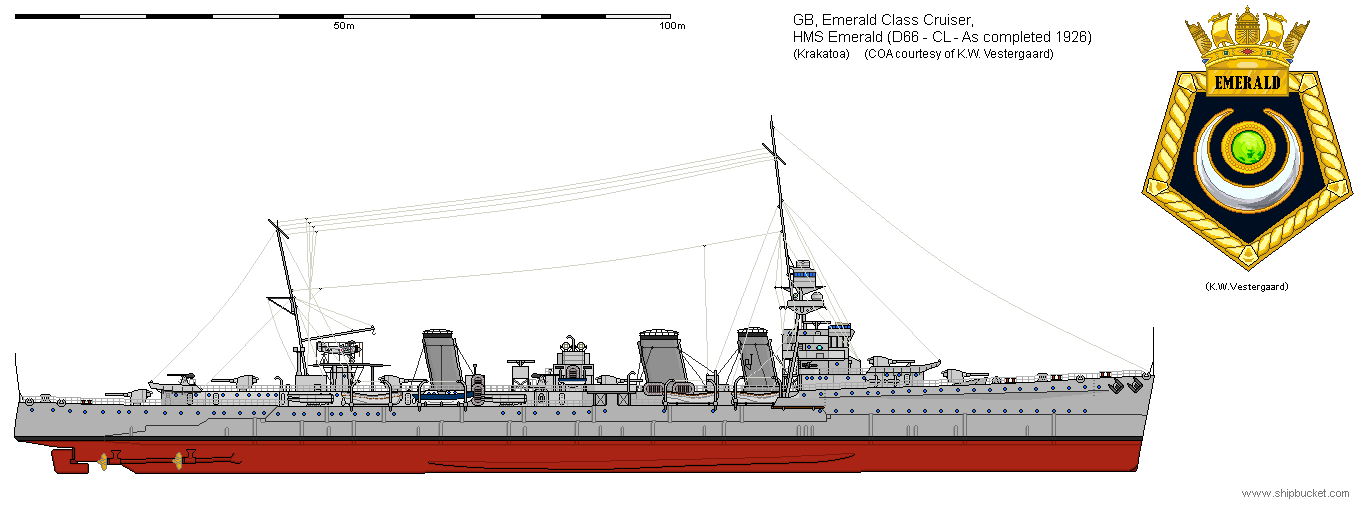

The next 6 drawings are of E class types, 2 as completed, 2 1935 update,
and 2 1943. All are drawings of the real E class cruisers, three drawings of
never-were ships are at the end.
Next up was the original turret version of E class that I drew years ago
F Class Cruisers with four and five 7.5" armaments, with those horrible hand
loaded mountings.
HMS Emerald Video (Copyright of 3D Model by Delta Strife)
The video does work but can take 1-2 minutes to load. It used Quicktime or VLC Media player on my computer.
