HNoN Eidsvold (BB-1938)
Back to Special Projects page:
The Norwegian Navy had basically been a coast defence force right up to the
start of World War One. Till then, ships armed with 8.3" and 9.4" guns might
have been okay, but the arms race prior to WW1 added so many heavily armed
capital ships to the worlds naval lists that those types of ship no longer had
any deterrent value. Only large gunned ships could have any chance to defend the
coastal routes of Norway.
The British Revenge class battleships were originally to have been a class of
seven, but the last two were cancelled and reordered as part of the Barfleur
class. This left eight twin 15" turrets with no homes to go to. Four were used
to arm monitors. The other four were put aside as extra spare turrets in case of
damage to the 15" battleship force. With the Royal Navy being forced to divest
itself of ships and equipment at the end of WW1 and through the Washington
Treaty, those four turrets were put up for sale and were purchased by Norway for
the purpose of putting them aboard two more coast defence ships. When it came
time to build the new ships the Norwegian policy had changed and a true
battleship would be built with the four turrets aboard.
The Eidsvold was laid down in 1934 and completed in 1938. The use of the
refurbished 15" turrets and guns made a considerable saving in building times
and costs. The secondary and tertiary armaments were standard British weaponry
of the time with 4.5" twin dual purpose turrets and guns, 2 pounder in quad
mountings, and single 20mm Oerlikon cannons. The quad 2 pounder weapons were
later replaced with 40mm Bofors. When completed in 1938 there was no radar
systems fitted. The first radar units would not be fitted till June 1940 when
the ship was taken in hand for a full refit and upgrade of systems.
April 1940 and the Germans invade Denmark and Norway. The Eidsvold is at
Trondheim when it receives the news of invasion. Steam is raised and the ship
makes ready for departure. Just as the ship is leaving port an air strike
arrives to try to cripple and hold the Eidsvold in port. The Eidsvold defends
itself well with its AA weapons and receives only one bomb hit and two near
misses. Outside the Port the Eidsvold runs into the German force that has been
tasked with taking Trondheim. The Admiral Hipper and four destroyers attacked
the Eidsvold but the Eidsvold was already at full readiness and in a brisk
engagement, forced the withdrawal of the German forces with the Hipper being
badly damaged and two destroyers sunk. The Eidsvold received a few 8" and 5"
shell hits that did little damage. It was the torpedo hit that did the damage.
Slowing the ship to 20 knots. The Eidsvold was ordered to Britain to repair the
damage received in the action.
Displacement | 38,700 tons standard, 44,400 tons full load |
Length | 750 ft |
Breadth | 96 ft |
Draught | 28 ft |
Machinery | 4 shaft steam turbines, 120,000shp |
Speed | 30 knots |
Range | 6000 miles at 15 knots (1800 at 30 knots) |
Armour | 12" side, 6" deck, 12"/8.2"/5.1" turrets |
Armament | 8 x 15" (4x2) 16 x 4.5" (8x2) 28 x 2pd (7x4) 16 x 20mm (16x1) |
Aircraft | 4 |
Complement | 1800 |
Notes | HNoN Eidsvold |

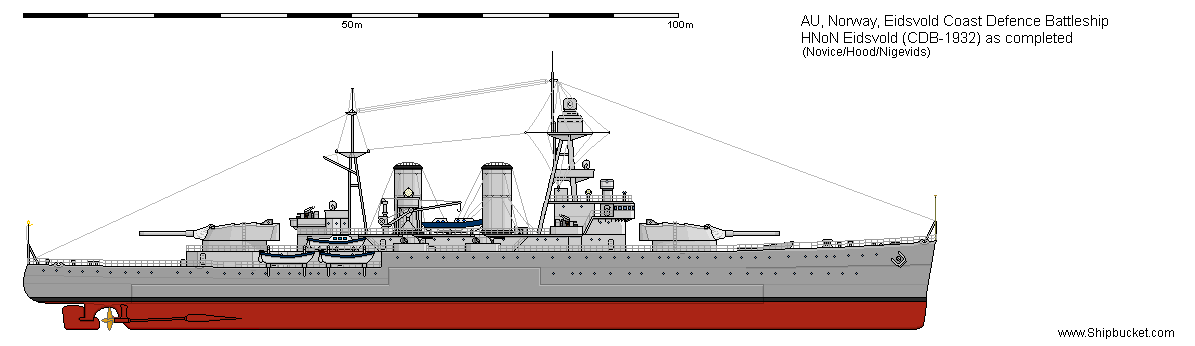

The original plans for the four 15" turrets and guns was to put them aboard a
pair of coastal battleships along the lines of the ships they already had in
service. What made this interesting was that a ship with four 15" guns to fire a
broadside from was the equal of a ship firing a broadside of nine 12". It would
require ships of major force to winkle these ships out of their fjord lairs.
So what can I come up with for this pair of ships. Mini battleships.
The two ships were originally to have been laid down in 1925 to replace the
Glatton and Gorgon of the Royal Navy, which were originally being built for
Norway. The order was put off till 1929 when the Crash of 1929 came along and
the order was again put off till 1932. It was in 1932 that the change of policy
came about and the design was changed to be a full battleship.
Displacement | 9,700 tons standard, 12,400 tons full load |
Length | 457 ft |
Breadth | 82 ft |
Draught | 20 ft |
Machinery | 2 shaft steam turbines, 35,000shp |
Speed | 24 knots |
Range | 6000 miles at 12 knots |
Armour | 4" side, 3" deck, 12"/8"/5" turrets |
Armament | 4 x 15" (2x2) 8 x 4" (4x2) 12 x 2pd (3x4) |
Aircraft | nil |
Complement | 700 |
Notes | HNoN Eidsvold |
