The French navies first post-war cruiser class were the three ships of the Duguay
Trouin Class and the half-sister Charlemagne. They were not essentially 'Treaty'
cruisers but like the British E and F classes trials ships that could be built
in a reasonable time to fill the gaping shortage of cruisers in the French
Fleet. The original three ships were to be armed with a 155mm (6.1") gun
developed from a French Army gun and the weapons on the captured ex German ships
now in the French Navy. The last ship of the class was laid down three years
after the last Trouin class was completed. It was to feature the weapons removed
from the Ernest Renan class armoured cruisers. An armament of eight 7.6" would
be put aboard. The 7.6" guns and turrets would be refurbished to allow the
weapons to have a range of 24,000 yards and be as good as most cruiser weapons
of the time.

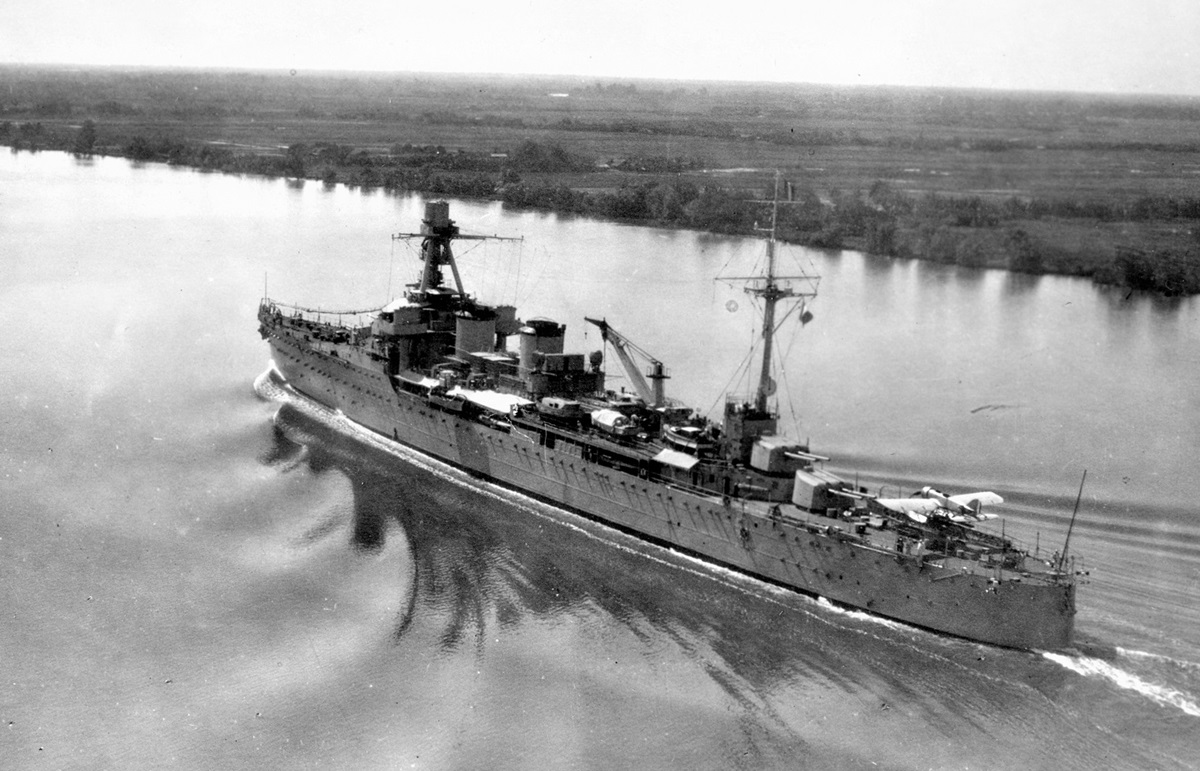

The original ships did not include a catapult and aircraft. These were fitted to
the ships in the late 1920's.
The fitting of the 7.6" meant a rejig of the middle of the ship to take the
catapult and aircraft. One set of torpedoes was removed to allow the fitting of
the large ships boats. All of the four ships received a major refit in 1937-38
to upgrade the AA capabilities of the ships.
Further AA armaments would be added as the new twin 37mm Bofors mounting entered
French service. The four ships were the 6th cruiser squadron in July 1940 with
Admiral Godfroy's Battle Squadron at Alexandria. That French Fleet re-entered
the war in December 1942 and became part of the Mediterranean Fleet (East). The
ships assisted with the Italian landings and helped fight up the Italian
mainland. It was during these actions that the Charlemagne was sunk after being
hit by two Fritz-X glider bombs. One would probably have been enough, two, set
off magazines, that
virtually blew the ship apart. The Duguay Trouin was the last of the class to be
in service in Indo-China helping the French fight and lose its preliminary war
to Vietnam.
Displacement | 8,000 tons normal, 9,800 tons full load | |||
Length | 592 ft | |||
Breadth | 57 ft | |||
Draught | 19 ft | |||
Machinery | 4 shaft steam turbines, 100,000shp | |||
Speed | 33 knots | |||
Range | 3000 miles at 15 knots | |||
Armour | 1" deck, 1.5" box round magazines, turrets and conning tower. | |||
Armament | Duguay Trouin (as completed) 8 x 6.1" (4x2) 4 x 75mm AA (4x1) |
Duguay Trouin (1938) 8 x 6.1" (4x2) 8 x 3.9" (4x2) 12 x 20mm H-S (12x1) |
Charlemagne (as completed) 8 x 7.6" (4x2) 4 x 75mm AA (4x1) |
Charlemagne (1939) 8 x 7.6" (4x2) 8 x 3.9" AA (4x2) 12 x 20mm H-S (12x1) |
Torpedoes | 12 x 21.7" (4x3) | 12 x 21.7" (4x3) | 6 x 21.7" (2x3) | 6 x 21.7" (2x3) |
Complement | 580 | 605 | 610 (Flagship) | 640 (Flagship) |
Notes | FAN Duguay Trouin FAN Lamotte Piquet FAN Primauguet FAN Charlemagne |
