FAN Duquesne (CA-1928)



Back to French Navy page





The Duquesne type were the first cruisers built for France under the new Washington Treaty cruiser rules, 10,000 tons and 8" guns. The ships were a follow on from the previous Duguay Trouin class theory. Almost no armour and high speed. But these were built at the same time the Italians were building their Trieste and Bolzano class cruisers under the same theory. In the Mediterranean a ship needed to be fast if it was to try and intercept enemy shipping. With the advent of faster and better ranged aircraft a lot of those interception tasks were given over to aircraft.


I am not going to do anything to the Duquesne class. They were a good first effort at a 10,000 ton, 8" cruiser. Their speed had ensured that they would be at each end of the Mediterranean ready to intercept the fast Italian cruisers. With the Armistice, one was interned with Admiral Godfroy's squadron at Alexandria, the other at Mers-el-Kebir.



Once they were released back into the Allied fleets, both ships were allocated time and space at a US base where their systems could be upgraded.




The Duquesne and Tourville made it through the war and carried troops out to Indo-China and supported actions with their guns. Where the Suffren class had been discarded by 1950, the Duquesne's lasted into the 1950's due to their involvement in Indo-China. With the withdrawal of French units, the two ships returned to France, where they were decommissioned and sold for scrap.





Displacement
  • 10,160 t (10,000 long tons) (standard)
  • 11,404 t (11,224 long tons) (Normal)
  • 12,435 t (12,239 long tons) (full load)
Length
  • 191 m (626 ft 8 in) overall
  • 185 m (606 ft 11 in) between perpendiculars
Beam 19 m (62 ft 4 in)
Draught 6.32 m (20 ft 9 in)
Propulsion
  • 8 Guyot du Temple boilers, 20 kg/cm2 (280 psi) (215°)
  • 4-shaft Rateau-Bretagne single-reduction geared steam turbines for 118,358.4 shp (88,259.8 kW)
Speed 34 knots (63 km/h) (designed)
Range
  • 1,842 tons oil fuel
  • radius 5,000 nmi (9,300 km) at 15 knots (28 km/h)
  • 1,800 nmi (3,300 km) at 29 knots (54 km/h)
  • 700 nmi (1,300 km) at 33 knots (61 km/h)
Complement 605
Armament
  • 4 × 2 203mm/50 Modèle 1924 guns in Model 1924 twin mounts
  • 8 × 1 Canon de 75 mm modèle 1924 guns on a model 1922 HA single mounts
  • 4 × 2 Canon de 37 mm Modèle 1925 guns on single mount CA Model 1925
  • 12 × 1 Hotchkiss M1929 machine gun on single mounts
  • 6 × 550 mm (22 in) torpedo tubes Model 1925T triple mounts with 9 Model 1923D, Toulon torpedoes
Armour
  • Magazine box 30 mm (1.2 in) sides and 20 mm (0.79 in) crowns
  • Deck 30 mm (1.2 in)
  • Turrets and conning tower 30 mm (1.2 in)
Aircraft carried 2 FBA 17 and CAMS 37A (superseded by GL-810 then Loire-Nieuport 130
Aviation facilities 1 catapult

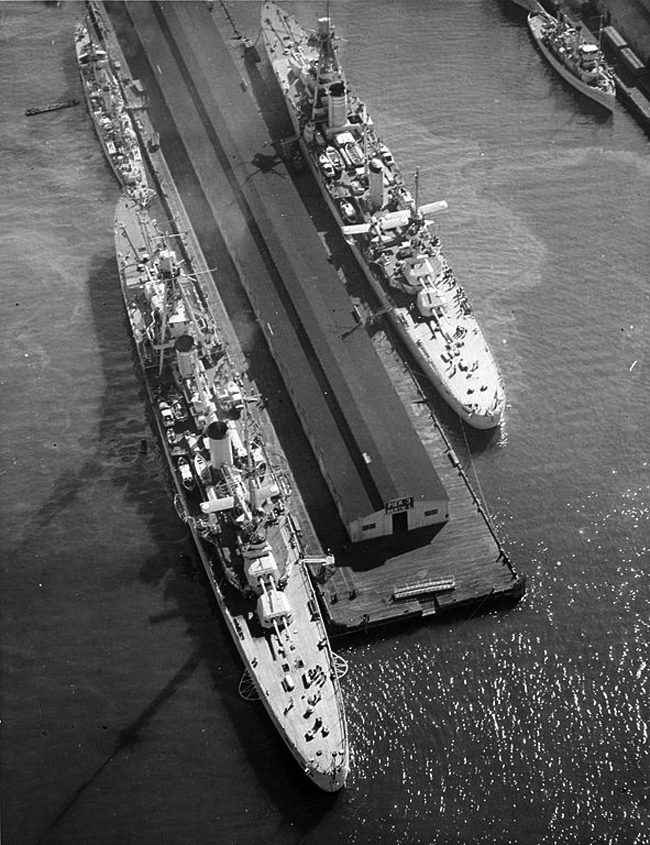

Below a Duquesne and Suffren class cruiser. Duquesne on left.
