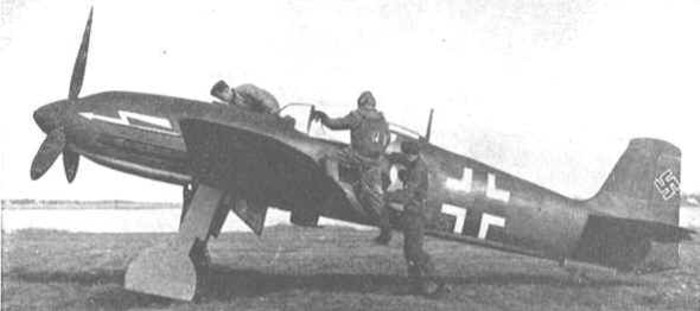

Heinkel HE-112B Hawk



Return to Airforce page



Leading single seat fighter of the airforce, the HE-112 had evolved from the same specification that produced the Me-109. The model B had an uprated engine for better all round performance. Further enhancements were made through 1938-39 including a 3 blade propeller, better armament and extra fuel for better combat range. The Argentinians also produced a navalised version to go with their aircraft carrier.

Specifications (He 112 B-2)

General characteristics

  • Crew: 1
  • Length: 9.22 m (30 ft 11 7/8 in)
  • Wingspan: 9.09 m (29 ft 9¾ in)
  • Height: 3.82 m (12 ft 6¾ in)
  • Wing area: 17 m² (183 ft²)
  • Empty weight: 1,617 kg (3,565 lb)
  • Max. takeoff weight: 2,248 kg (4,957 lb)
  • Powerplant: 1 × Junkers Jumo 210Ga liquid-cooled inverted V12 engine, 522 kW (700 hp)

Performance

  • Maximum speed: 510 km/h (317 mph)
  • Range: 1150 km (715 mi)
  • Service ceiling: 9,500 m (31,200 ft)
  • Wing loading: 132 kg/m² (27.1 lb/ft²)

Armament


  • 2 × 7.92 mm (.312 in) MG 17 machine guns with 500 rpg, mounted in the sides of the engine cowling
  • 2 × 20 mm MG FF cannons with 60 rpg, in the wings
